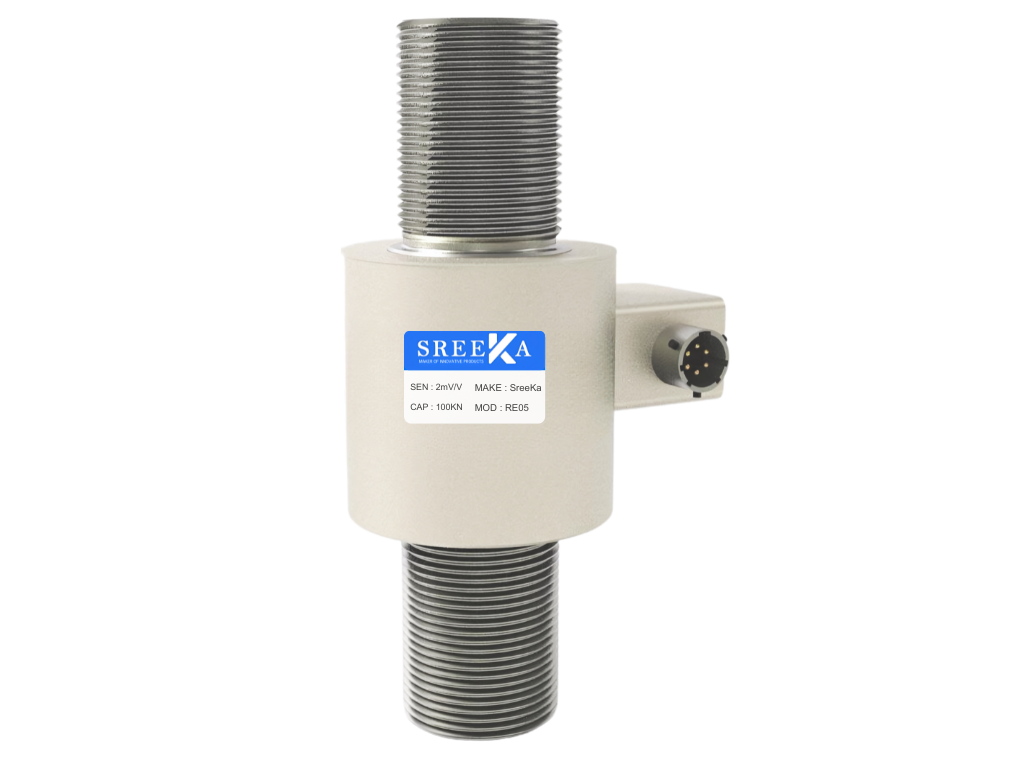

Efficiently measure tension and compression in mechanical linkages—perfect for actuators, testing machines, and control systems. Our compact rod end load cells deliver reliable results and easy installation, saving you time and optimizing your processes!
Datasheet can be downloaded from the documents section.
Pricing may vary based on the selected capacity to ensure optimal performance for your application.
| Parameter | Value |
|---|---|
| Capacity |
100N to 500kN, Custom capacity |
| Nominal Sensitivity | 2.0 mV/V |
| Linearity |
0.02% |
| Excitation | 10 - 12 VDC |
| Protection Class | IP66 |
| Material | Alloy, Stainless Steel |
Data Sheet
