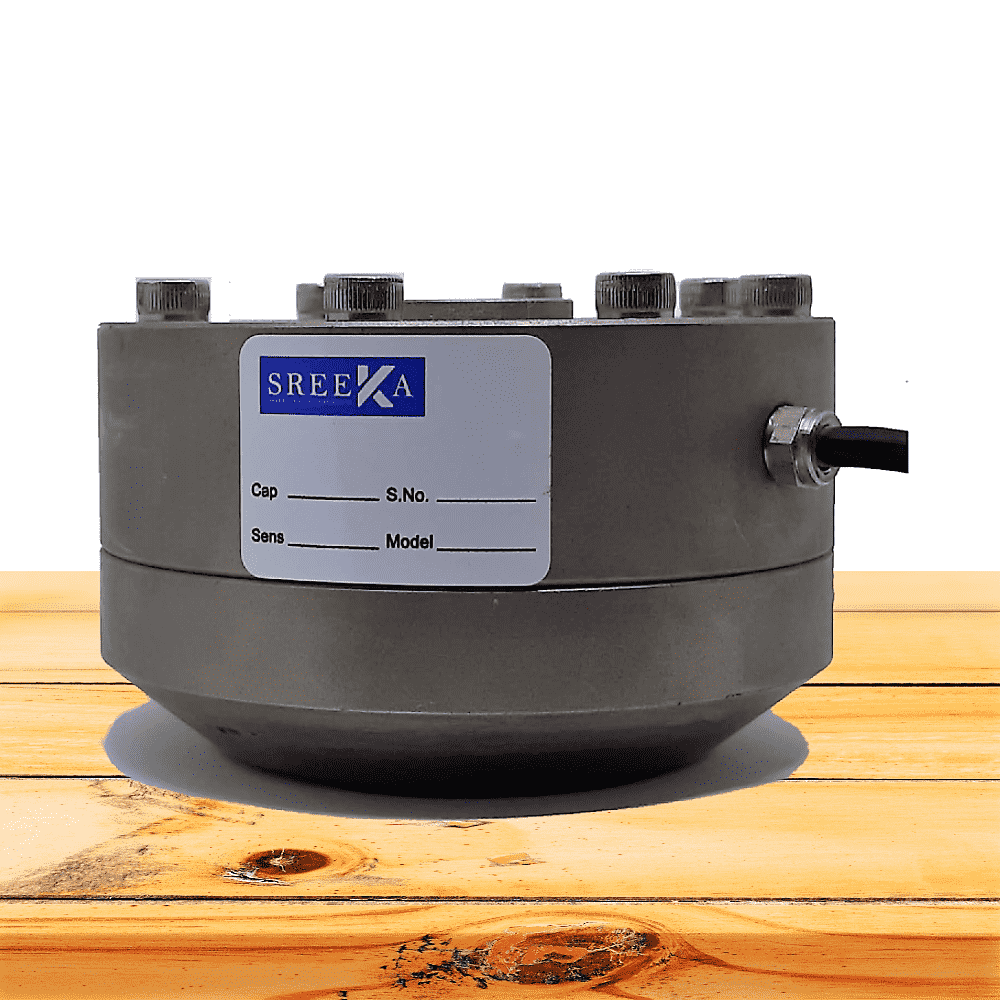

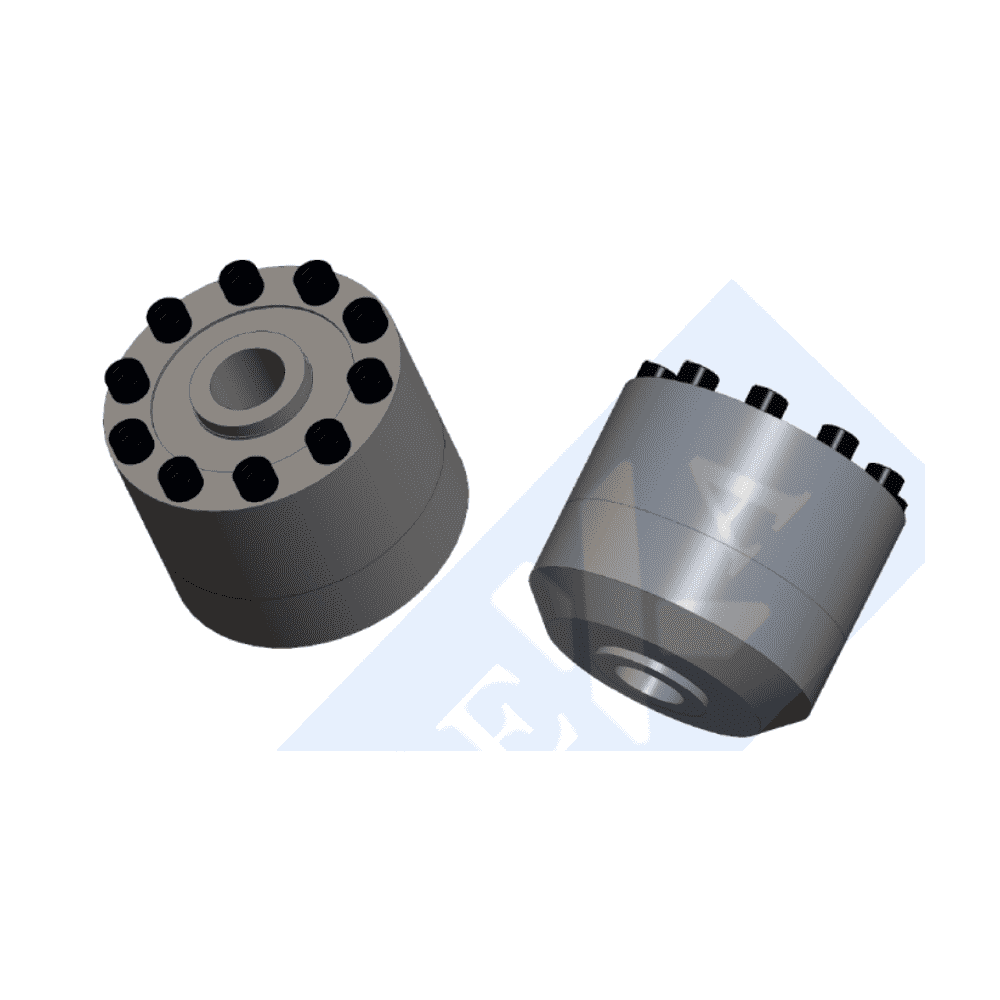

Universal Load Cell senses the tension and compression force. Advanced design and precise construction of the load cell achieves highest linearity in the entire region of tension to compression zone.
Due to high accuracy and sturdiness of the load cell, it is being used in the Material testing machine and calibration applications.
| Parameter | Value |
|---|---|
| Capacity |
5kN, 10kN, 100kN, 1000kN, 3000kN, Custom capacity |
| Nominal Sensitivity | 2.0 mV/V |
| Linearity |
0.02% |
| Excitation | 2 - 10 VDC |
| Shape | Round |
| Material | Alloy, Stainless Steel |
Technical Data Sheet
