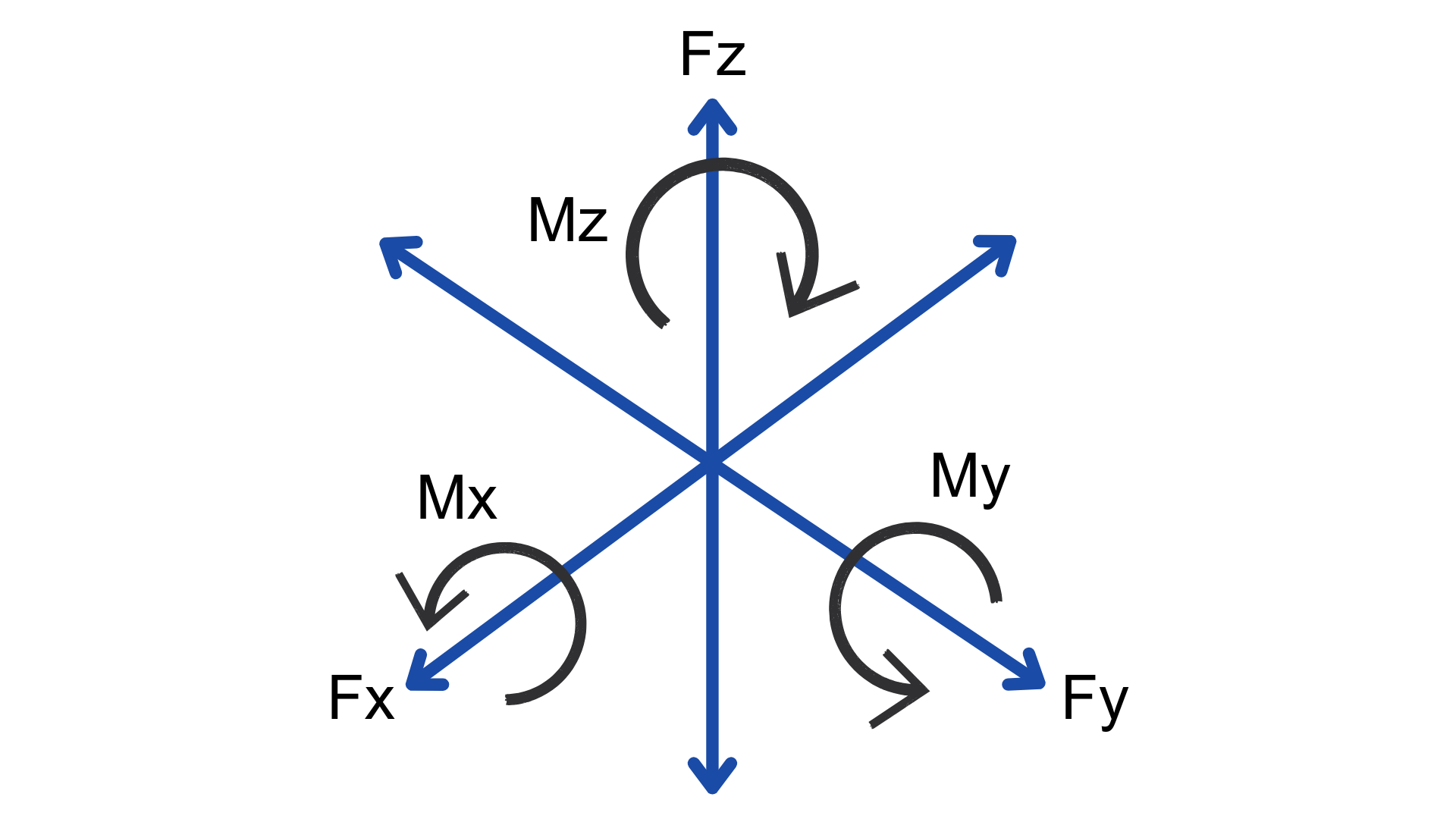

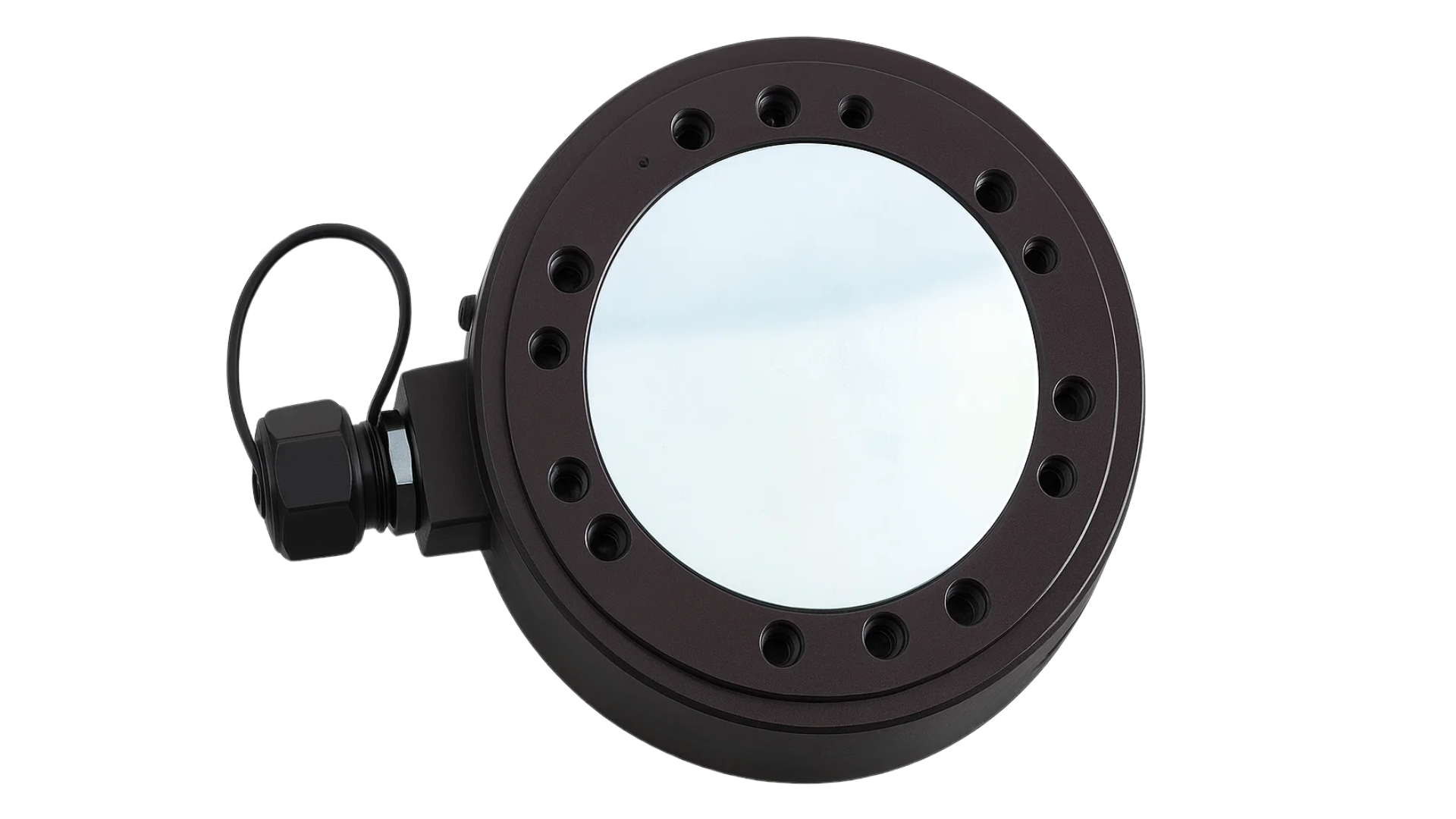

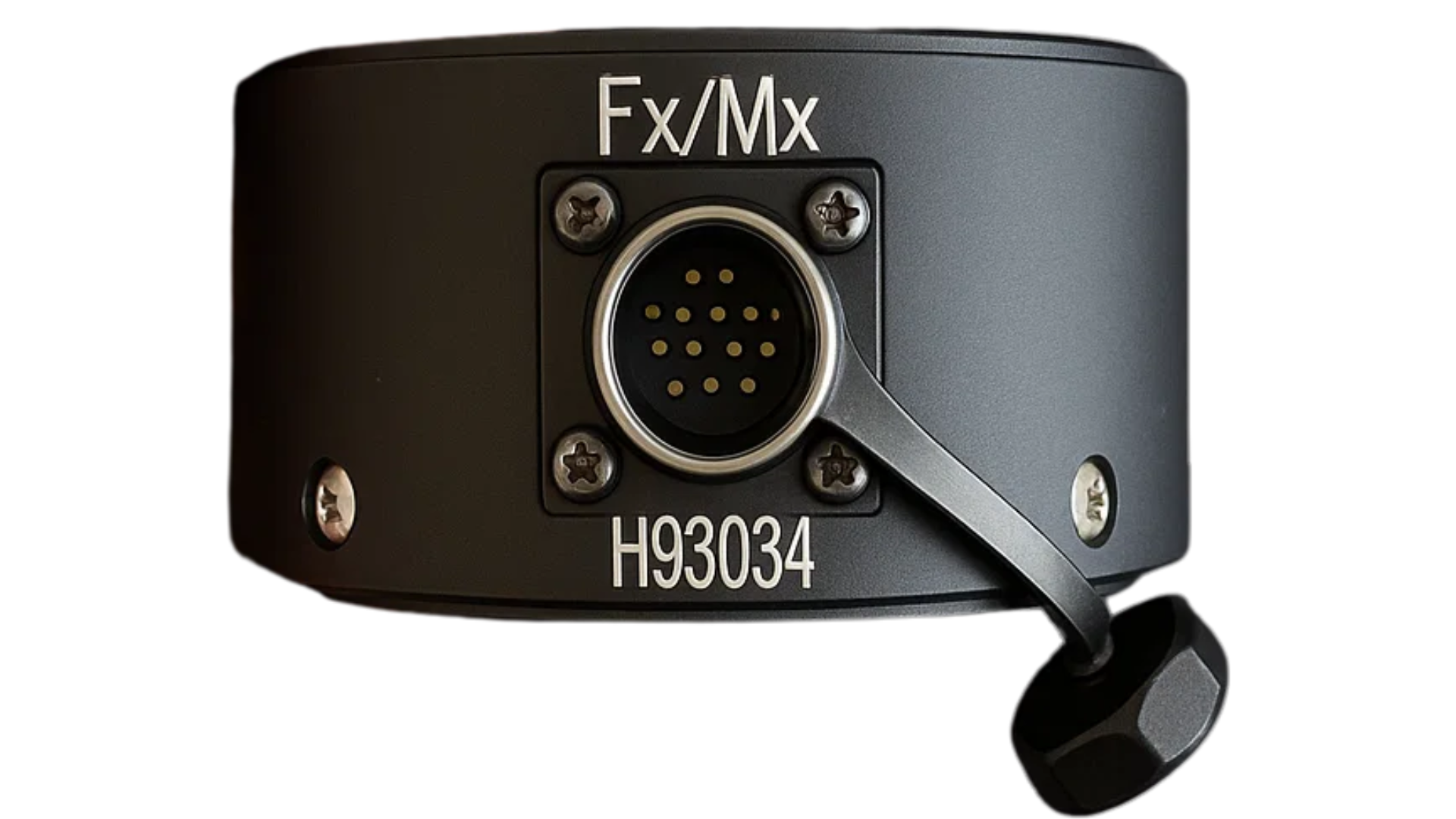

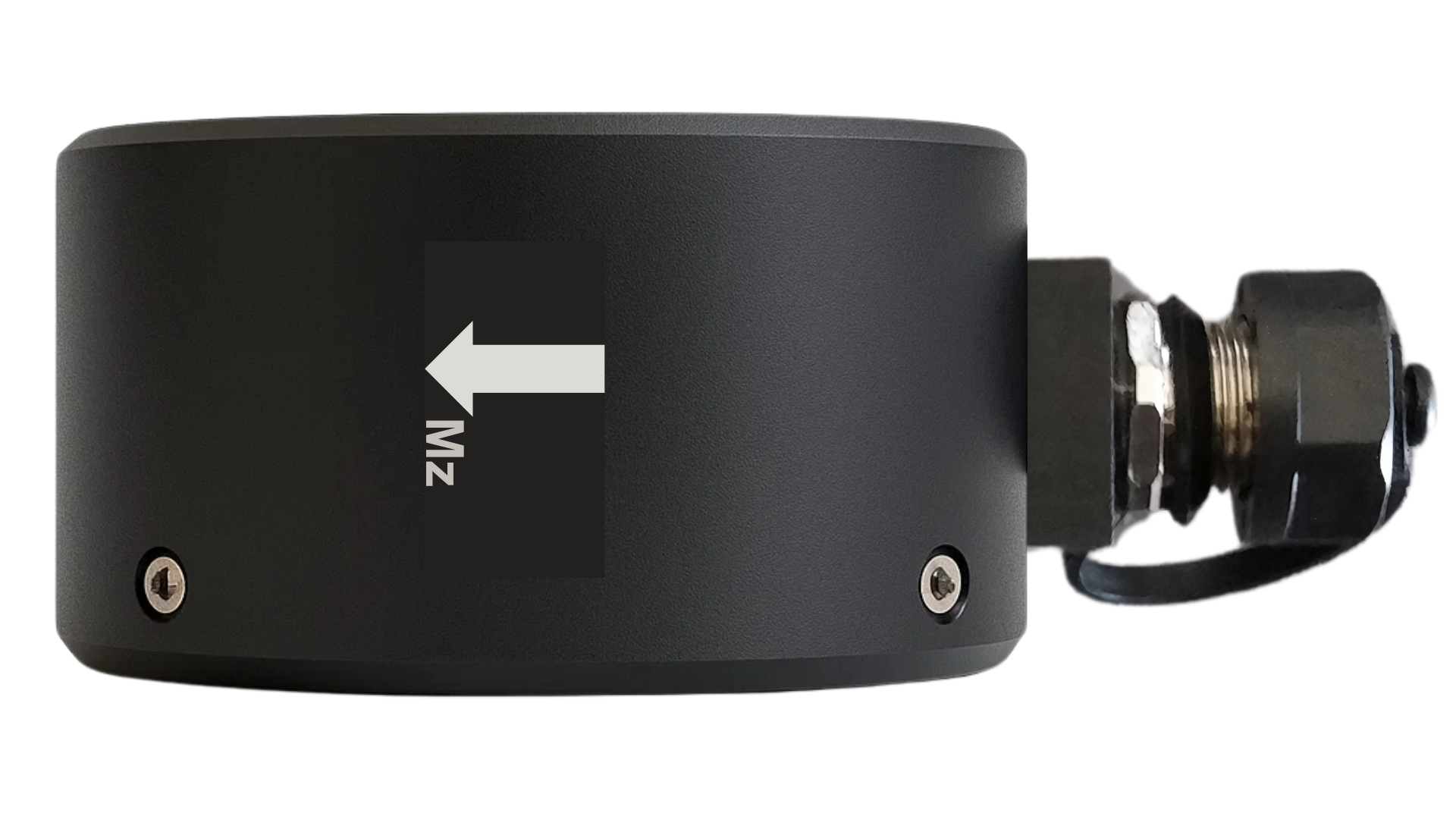

Achieve next-level precision in force and torque measurement with our 6-Axis Load Cell. Designed for advanced applications, this sensor accurately captures forces (Fx, Fy, Fz) and torques (Mx, My, Mz) across all axes — all in a single compact device.
✅ High Accuracy & Repeatability
✅ Simultaneous Multi-Axis Measurement
✅ Compact, Durable, and Reliable

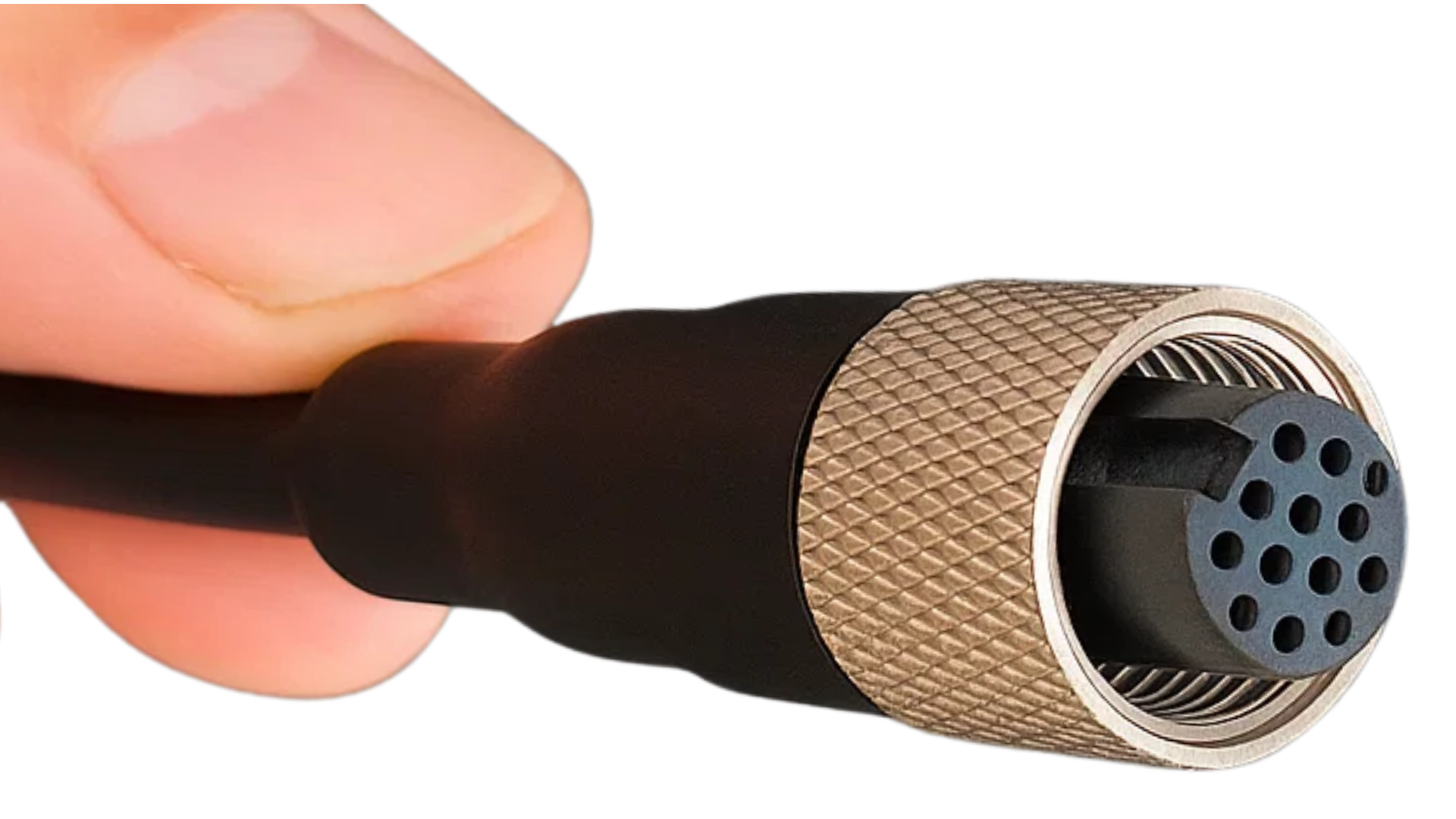

✅ Plug & Play Integration with data acquisition systems
Datasheet can be downloaded from the documents section.
Pricing may vary based on the selected capacity to ensure optimal performance for your application.
| Parameter | Value |
|---|---|

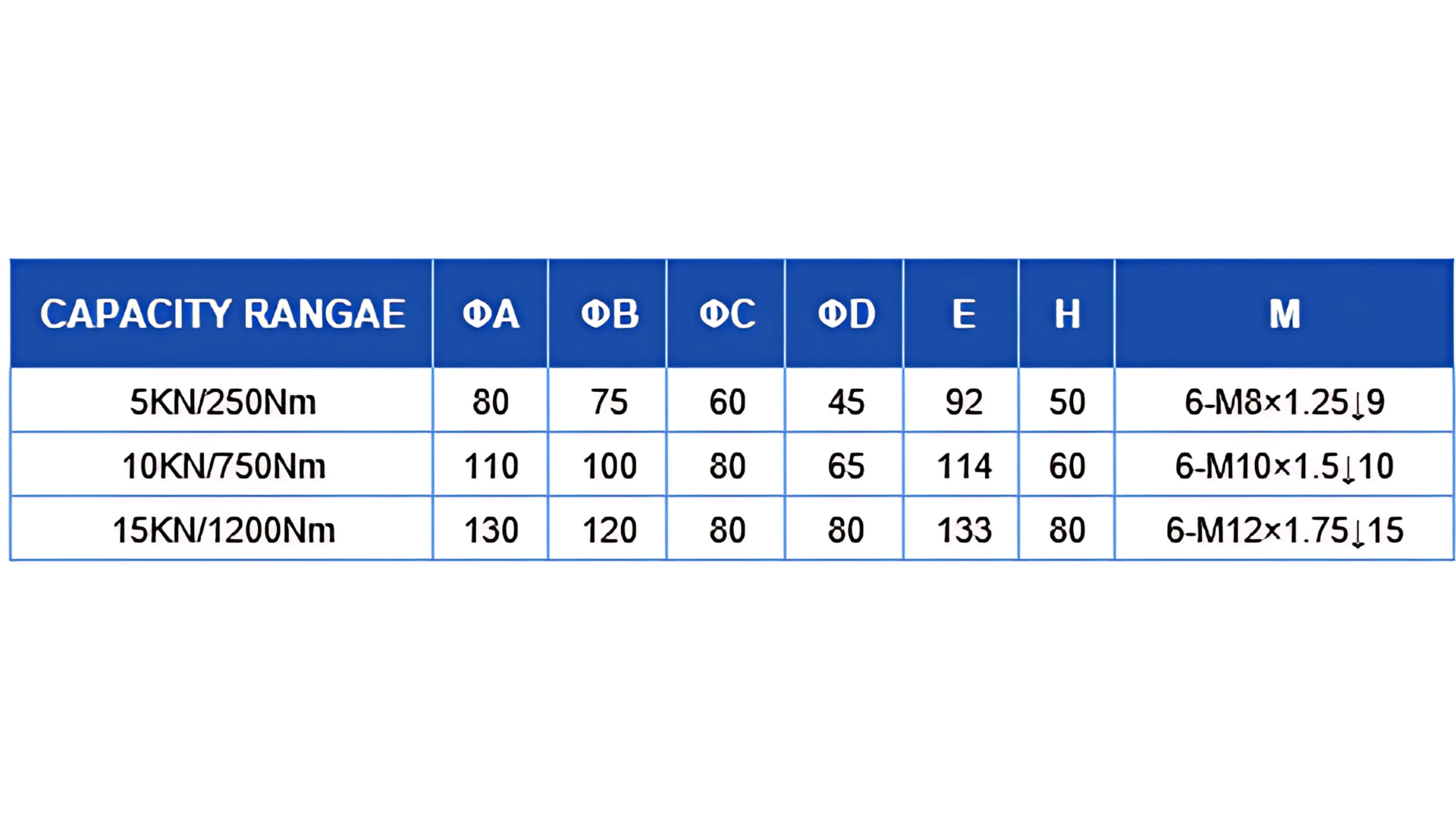

| Standard Capacities | 5kN/10kN/15kN; 250Nm/750Nm/1200Nm |
| Material | Manufactured from High-Grade stainless Steel |
| Sensitivity X-Axis | 0.5-1.0 mV/V |
| Sensitivity Y-Axis | 0.5-1.0 mV/V |
| Sensitivity Z-Axis | 0.5-1.0 mV/V |
| Crosstalk from X to Y | 1% of rated output |
| Crosstalk from Y to X | 1% of rated output |
| Crosstalk from Z to X/Y | 1% of rated output |
| Crosstalk from X/Y to Z | 2% of rated output |
Data Sheet
