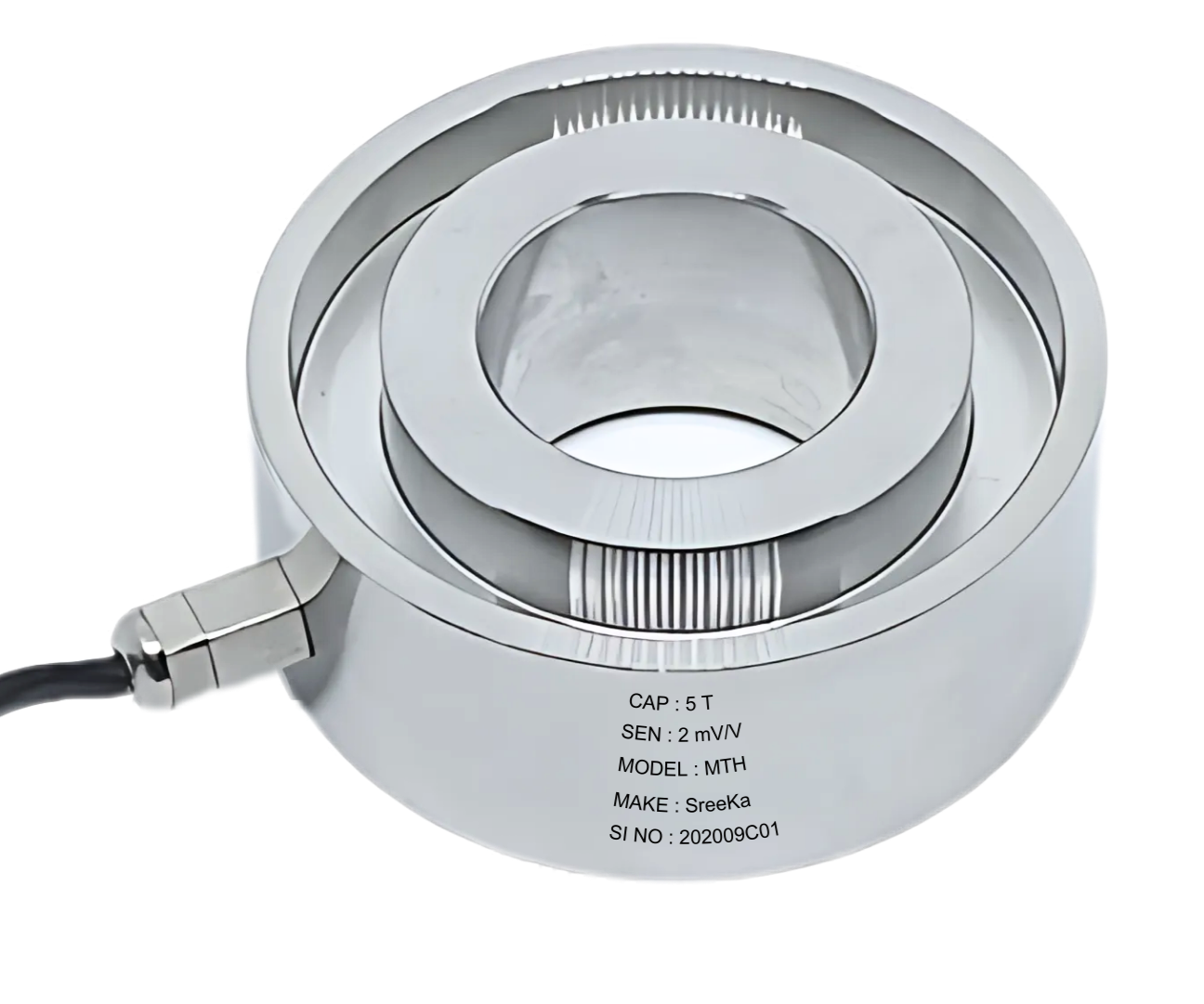

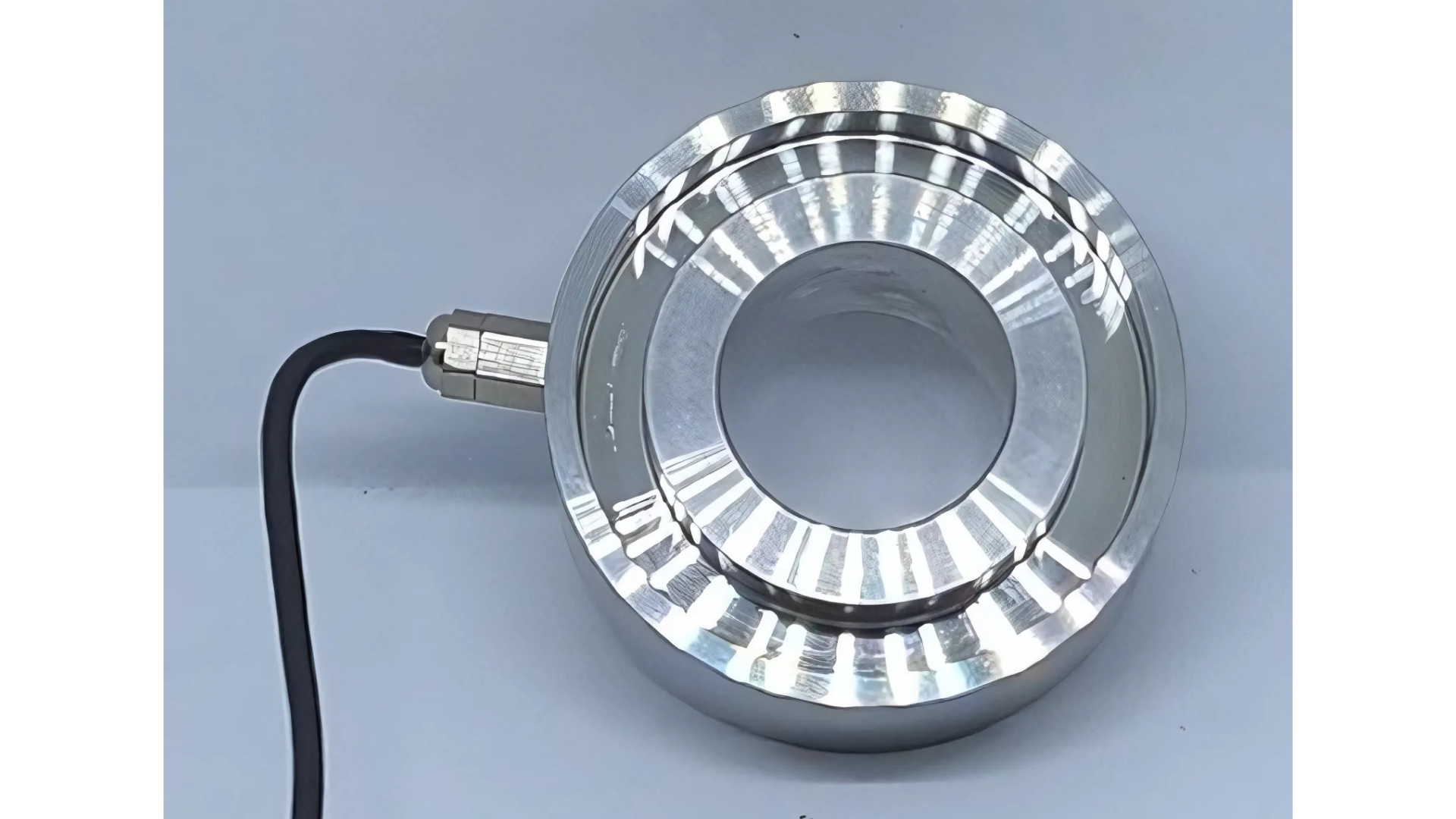

Get precise compression force measurements in tight spaces with our Low Profile Donut Load Cell. Perfect for bolt tensioning, press-fitting, and structural monitoring, its compact and through-hole design ensures accuracy and convenience. Don't let space constraints hold you back - Available in multiple capacities and inner diameters to suit your application needs.
Datasheet can be downloaded from the documents section.
Pricing may vary based on the selected capacity to ensure optimal performance for your application.
Parameter | Value |
---|---|
Capacity |
500N to 200kN, Custom capacity |
Nominal Sensitivity | 2.0 mV/V |
Operating Temperature Range |
-20°C to +80°C |
Excitation | 10 - 12 VDC |
Protection Class | IP64 |
Shunt Calibration Value | 100 kohms |
Low Profile Donut Load Cell Data Sheet
