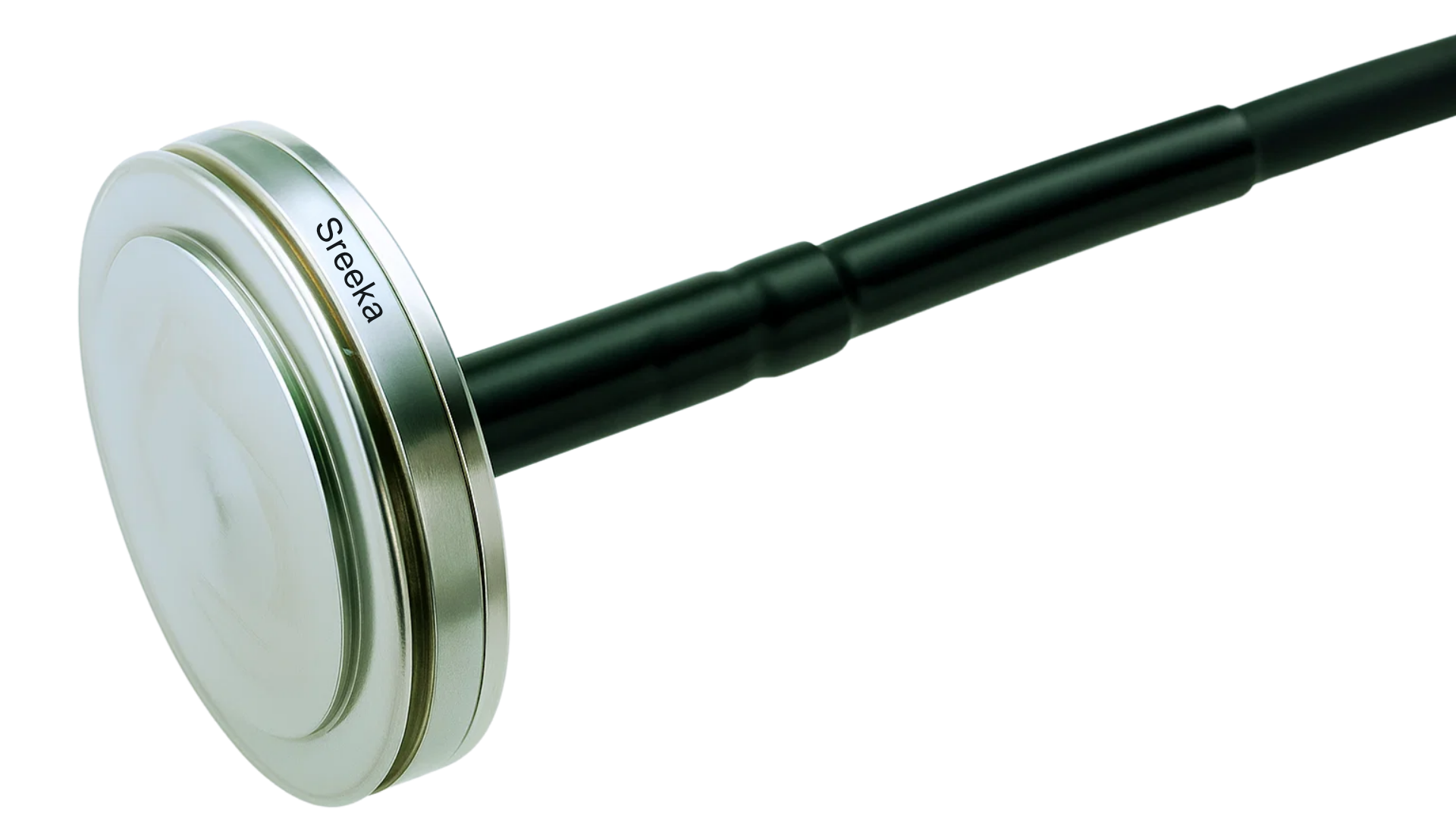

Miniature Wall Surface Soil Pressure Cell Lab Scale

Rs. 10,000.00
Measure soil pressure with precision and reliability using our Wall Surface Soil Pressure Cells, engineered for use in shield machines, tunnel linings, retaining structures, and similar applications. These compact, rugged...

Many in stock

Miniature Wall Surface Soil Pressure Cell Lab Scale

Rs. 10,000.00
Qty:

Measure soil pressure with precision and reliability using our Wall Surface Soil Pressure Cells, engineered for use in shield machines, tunnel linings, retaining structures, and similar applications. These compact, rugged sensors are ideal for capturing earth pressure acting directly on structural surfaces.

Whether you're monitoring backfill pressure or wall pressure in shield tunneling machines, these sensors provide the durability and accuracy demanded by geotechnical and civil engineering professionals.

Datasheet can be downloaded from the documents section.

Pricing may vary based on the selected capacity to ensure optimal performance for your application.

Data Sheet

Parameter Value
Rated Capacity
1MPa, 500MPa, 200KPa
Material Manufactured from high-grade alloy steel or stainless steel for superior strength and durability.
Safe Overloads 120%
Weight Approx. 40 g (Excluding cable)
Rated Output 0.25 mV/V or more
Application Short-term or model experiments
